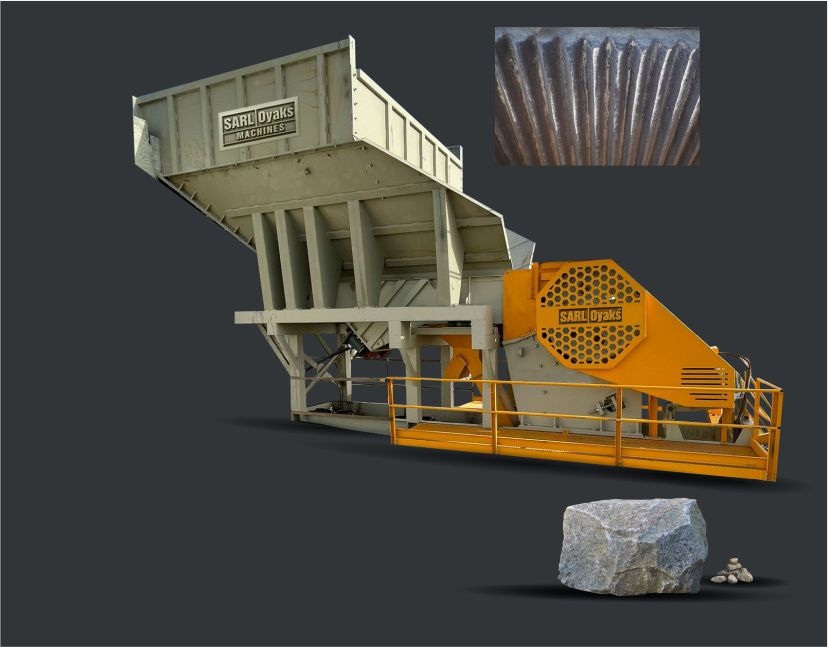

Jaw crushers break large abrasive stones with the high-pressure force applied to the material. Mechanical pressure is applied using the two jaws of the breaker; while one is stationary, the other is making an elliptical motion. Jaw crushers, which have secondary options besides the primary, are among the most preferred crushers with their ability to crush materials of any hardness. Low operating costs and easy maintenance opportunities are among the most important features that increase the reason for preference.

Support Plate
The backing plate, working at the optimum angle, provides extra breaking force and at the same time the safety of the drive system.

Flywheel
Ductile lron Flywheel (GGG-60 Quality) Adjustment
The output range can be adjusted hydraulically with the setting plate.

Jaws
Reversible high manganese steel casting jaws are offered as standard. There are also jaw designs suitable for different types of materials to be broken.

Crusher Body
Welded design breaker body made of low carbon steel, heat treated for strain relief.
